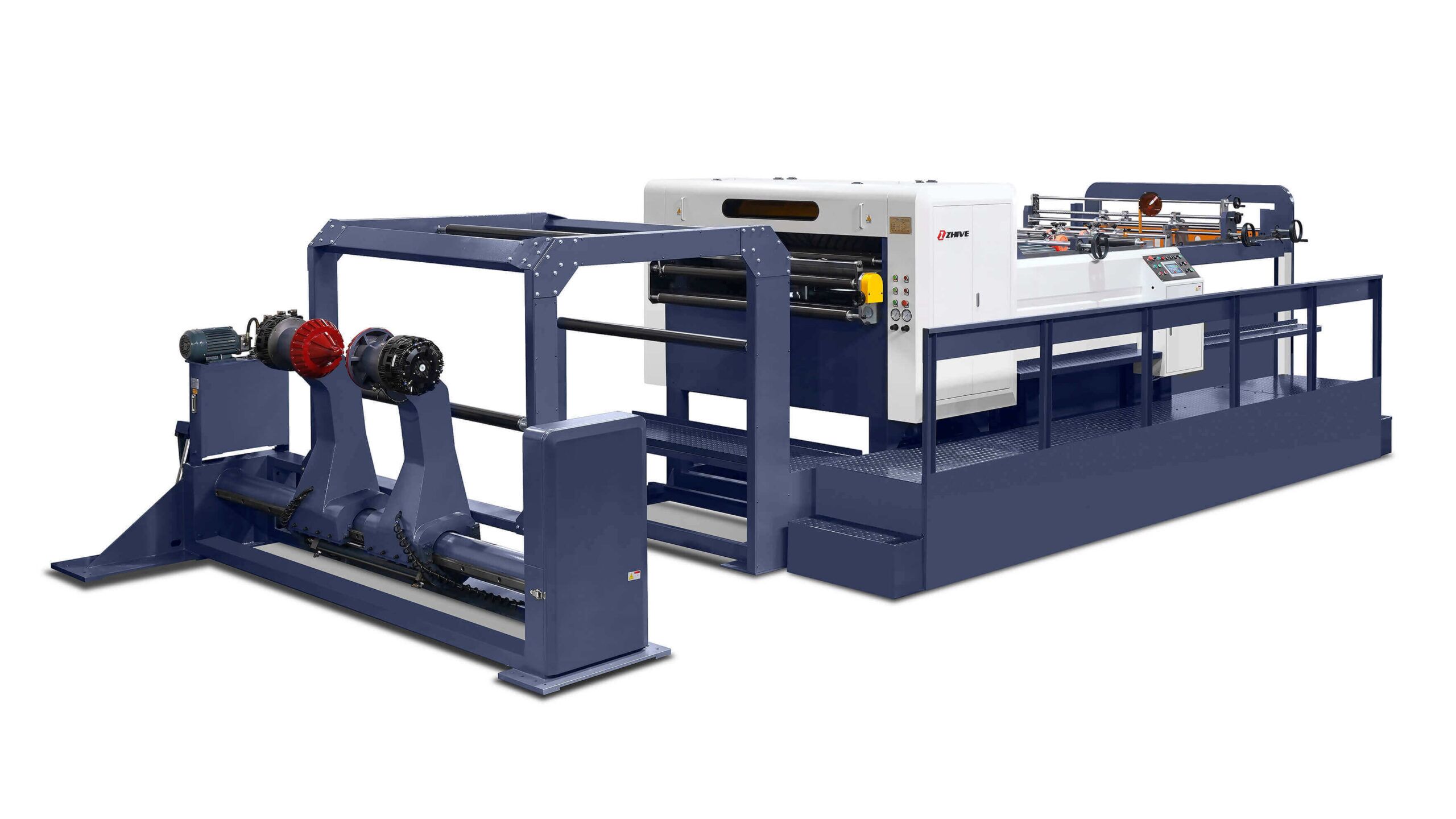

C-1400/1700/1900-1 type roll cutting machine adopt advanced technology from Germany and Britain, the most important transmission system is driven by AC servo motor, ensure the cutting fast, continuous and stable. The main high-speed transmission of the cutter holder and cutter parts is adopted by German precision bearing. At the same time, to make sure the cutting accuracy and the life of the cutter, the equipment adopts a high wear-resistant cutter. It is very easy to operate the equipment by using the touch screen control panel.
The equipment is widely used in the paper industry, paper products distributors, and packing and printing companies.
| Model | C-1400/1700/1900-1 |
|---|---|
| Gram weight range | 50-500 g/㎡ |
| Max. Diameter of roll | 1800mm |
| Max. Width of roll | 1400/1700/1900mm |
| Cutting length | 400-1600mm |
| Cutting accuracy | ±0.4mm |
| Max. Speed | 300 m/min |
| Power | 23/25/28KW |
| Voltage | 380V/220V 50Hz |
| Weight | 9/10/11T |
| Size | 1100×3900×2350mm |
Roll paper sheeting machine / Roll slitting machine / Platform paper cutting machine / manufacturer.
